II5676 | IFM electronic

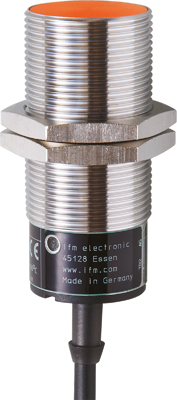

Inductive sensor, PNP, flush mounting M30, flush, antivalent, 36 V (DC), 100 mA, II5676
Order No.: 82P5923
EAN: 4021179126618
MPN:
II5676
Unit Price (€ / pc.)
115.4895 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
115.49 € *
Price list
Quantity
Price per unit*
1 pcs.
115.4895 €
3 pcs.
112.2884 €
5 pcs.
109.2658 €
*incl. VAT plus shipping costs
**Subject to prior sale
Inductive sensor, II5676, IFM electronic
Features
- Complementary output function NO/NC
- Wide operating temperature range
- Robust metal housing for use in harsh industrial environments
- For a precise position detection on machines
Technical specifications
Connection | Kabel, PUR 4x0,34 mm², 2 m | |
Version | PNP | |
Detecting distance | 10 mm | |
Length | 67 mm | |
Assembly | Einbaumontage M30, bündig | |
Product type | Induktiver Sensor | |
Latching switching function | Antivalent | |
Switching Voltage (DC) | 36 V | |
switching current | 100 mA | |
Degree of protection (IP) | IP67 |
Download
Logistics
Country of origin | RO |
Customs tariff number | 85365019 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
