II5446 | IFM electronic

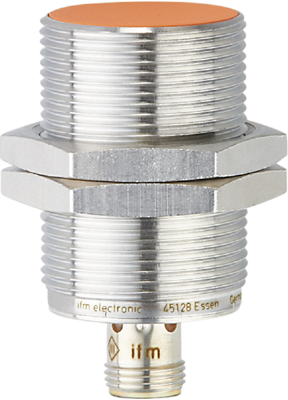

Inductive sensor, PNP, flush mounting M30, flush, 1 Form A (N/O), 30 V (DC), 100 mA, II5446
Order No.: 82P5907
EAN: 4021179125901
MPN:
II5446
Unit Price (€ / pc.)
95.4618 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
95.46 € *
Price list
Quantity
Price per unit*
1 pcs.
95.4618 €
3 pcs.
92.8200 €
5 pcs.
90.3210 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, II5446, IFM electronic
Features
- Robust metal housing for use in harsh industrial environments
- Wide operating temperature range
- High protection rating for the requirements of harsh industrial environments
- For a precise position detection on machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | inductive sensor | |
| Length | 55 mm | |
| Switching Voltage (DC) | 30 V | |
| Detecting distance | 10 mm | |
| Degree of protection (IP) | IP67 | |
| Connection | M12-connector | |
| Version | PNP | |
| Assembly | flush mounting M30, flush | |
| switching current | 100 mA | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
