II5436 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting M30, not flush, 1 Form A (N/O) + 1 Form B (N/C), 55 V (DC), 400 mA, II5436
Order No.: 82P5905
EAN: 4021179125802
MPN:
II5436
Unit Price (€ / pc.)
90.7613 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
90.76 € *
Price list
Quantity
Price per unit*
1 pcs.
90.7613 €
3 pcs.
88.2504 €
5 pcs.
85.8704 €
*incl. VAT plus shipping costs
Subject to prior sale

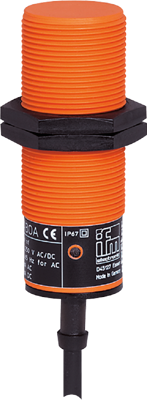

Inductive sensor, II5436, IFM electronic
Features
- Output function normally open / normally closed programmable
- Wide operating temperature range
- Two-wire technology
- High protection rating for the requirements of harsh industrial environments
- Large operating voltage range
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Detecting distance | 15 mm | |
| Degree of protection (IP) | IP67 | |
| Version | PNP/NPN | |
| Connection | cable, PUR/PVC 2x0.5 mm², 2 m | |
| Assembly | flush mounting M30, not flush | |
| switching current | 400 mA | |
| Switching Voltage (DC) | 55 V | |
| Length | 81 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
