II5320 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting M30, flush, 1 Form A (N/O) + 1 Form B (N/C), 55 V (DC), 400 mA, II5320
Order No.: 82P5899
EAN: 4021179124805
MPN:
II5320
Unit Price (€ / pc.)
97.3063 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
97.31 € *
Price list
Quantity
Price per unit*
1 pcs.
97.3063 €
3 pcs.
94.6288 €
5 pcs.
92.0703 €
*incl. VAT plus shipping costs
Subject to prior sale

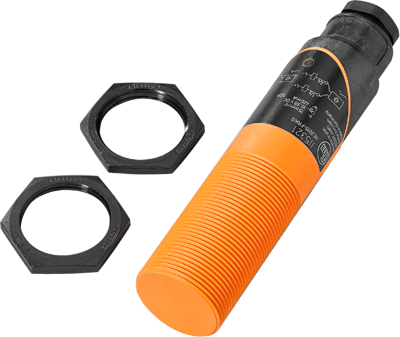

Inductive sensor, II5320, IFM electronic
Features
- Output function normally open / normally closed programmable
- Wide operating temperature range
- Two-wire technology
- With terminal chamber that can be rotated by 90°
- Large operating voltage range
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Detecting distance | 10 mm | |
| Degree of protection (IP) | IP65 | |
| Version | PNP/NPN | |
| Connection | connection terminal 2.5 mm²/cable gland M20 | |
| Assembly | flush mounting M30, flush | |
| switching current | 400 mA | |
| Switching Voltage (DC) | 55 V | |
| Length | 125 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
