II5301 | IFM electronic

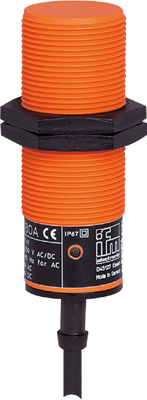

Inductive sensor, PNP, flush mounting M30, not flush, 1 Form A (N/O), 36 V (DC), 250 mA, II5301
Order No.: 82P5897
EAN: 4021179124614
MPN:
II5301
Unit Price (€ / pc.)
96.4733 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
96.47 € *
Price list
Quantity
Price per unit*
1 pcs.
96.4733 €
3 pcs.
93.8077 €
5 pcs.
91.2730 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, II5301, IFM electronic
Features
- Wide operating temperature range
- High protection rating for the requirements of harsh industrial environments
- For a precise position detection on machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Detecting distance | 15 mm | |
| Degree of protection (IP) | IP67 | |
| Version | PNP | |
| Connection | cable, PVC 3x0.5 mm², 6 m | |
| Assembly | flush mounting M30, not flush | |
| switching current | 250 mA | |
| Switching Voltage (DC) | 36 V | |
| Length | 81 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
