II503A | IFM electronic

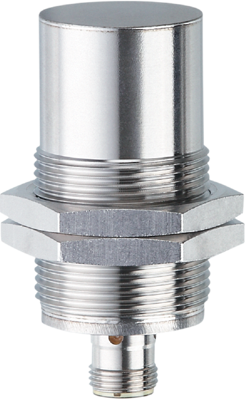

Inductive sensor, PNP, flush mounting M30, not flush, 1 Form A (N/O), 30 V (DC), 100 mA, II503A
Order No.: 82P5884
EAN: 4021179266178
MPN:
II503A
Unit Price (€ / pc.)
148.4049 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
148.40 € *
Price list
Quantity
Price per unit*
1 pcs.
148.4049 €
3 pcs.
144.2994 €
5 pcs.
140.4200 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, II503A, IFM electronic
Features
- For applications in hazardous areas
- High protection rating for the requirements of harsh industrial environments
- Metal sensing face for heavy duty
- Special mechanical stability ensures high plant safety
- Clearly visible indication of the switching status
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Detecting distance | 25 mm | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K | |
| Version | PNP | |
| Connection | M12-connector | |
| Assembly | flush mounting M30, not flush | |
| switching current | 100 mA | |
| Switching Voltage (DC) | 30 V | |
| Length | 65 mm | |
| Product type | inductive all metal sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
