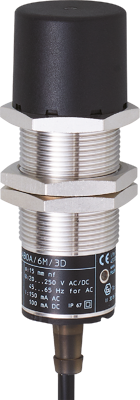

II001A | IFM electronic
Inductive sensor, brass white bronze-coated, flush mounting M30, not flush, 1 Form A (N/O), 250 V (DC), 100 mA, II001A
Order No.: 82P5869
EAN: 4021179271653
MPN:
II001A
Unit Price (€ / pc.)
183.7479 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
183.75 € *
Price list
Quantity
Price per unit*
1 pcs.
183.7479 €
3 pcs.
178.9284 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, II001A, IFM electronic
Features
- For applications in hazardous areas
- With combined AC/DC output stage
- Large operating voltage range
- Two-wire technology
- Robust metal housing for use in harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Detecting distance | 15 mm | |
| Degree of protection (IP) | IP67 | |
| Version | brass white bronze-coated | |
| Connection | cable, PVC 2x0.5 mm², 6 m | |
| Assembly | flush mounting M30, not flush | |
| switching current | 100 mA | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 250 V | |
| Length | 81 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
