IGR206 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting M18, flush, 1 Form A (N/O), 30 V (DC), 100 mA, IGR206
Order No.: 82P5750
EAN: 4021179254311
MPN:
IGR206
Unit Price (€ / pc.)
132.6493 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
132.65 € *
Price list
Quantity
Price per unit*
1 pcs.
132.6493 €
3 pcs.
128.9841 €
5 pcs.
125.5093 €
*incl. VAT plus shipping costs
Subject to prior sale

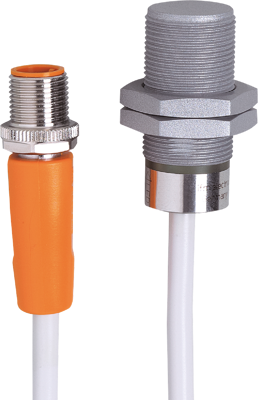

Inductive sensor, IGR206, IFM electronic
Features
- Resistant to weld slag thanks to non-stick coating
- Metal sensing face for heavy duty
- High shock and vibration resistance
- Particularly short housing for use where space is restricted
- Two-wire technology
Technical specifications
| Detecting distance | 6 mm | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K | |
| Assembly | flush mounting M18, flush | |
| switching current | 100 mA | |
| Length | 35 mm | |
| Product type | inductive all metal sensor | |
| Version | PNP/NPN | |
| Switching Voltage (DC) | 30 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
