IG7100 | IFM electronic
Inductive sensor, PNP, flush mounting M18, flush, 1 Form A (N/O), 30 V (DC), 100 mA, IG7100
Order No.: 81P9300
EAN: 4021179242448
MPN:
IG7100
Unit Price (€ / pc.)
40.4362 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
40.44 € *
Price list
Quantity
Price per unit*
1 pcs.
40.4362 €
5 pcs.
38.5798 €
10 pcs.
36.8781 €
*incl. VAT plus shipping costs
Subject to prior sale

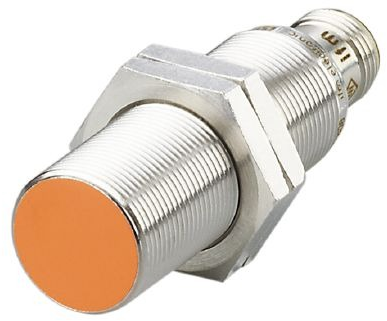

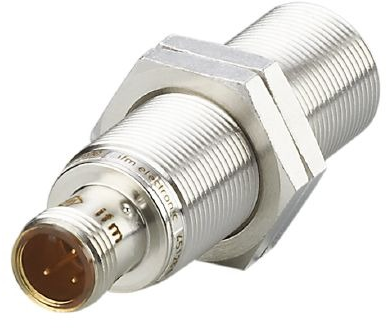

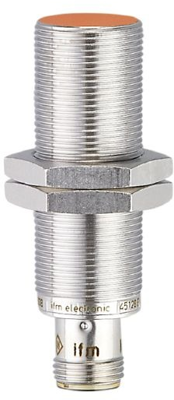

Inductive sensor, IG7100, IFM
The IG7100 is a inductive sensor with very high switching frequency and excellent price/performance ratio.
Features
- Clearly visible indication of the switching status
- Robust metal housing for use in harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP67 | |
| Version | PNP | |
| Assembly | flush mounting M18, flush | |
| switching current | 100 mA | |
| diameter | 18 mm | |
| Detecting distance | 5 mm | |
| Switching Voltage (DC) | 30 V | |
| Latching switching function | 1 Form A (N/O) | |
| Connection | M12-connector | |
| Product type | inductive sensor | |
| Length | 60 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
