IG5937 | IFM electronic

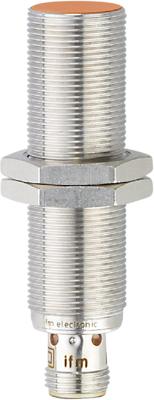

Inductive sensor, PNP, flush mounting M18, flush, 1 Form A (N/O), 30 V (DC), 200 mA, IG5937
Order No.: 82P5662
EAN: 4021179115575
MPN:
IG5937
Unit Price (€ / pc.)
89.3095 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
89.31 € *
Price list
Quantity
Price per unit*
1 pcs.
89.3095 €
3 pcs.
86.8343 €
5 pcs.
84.5019 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, IG5937, IFM electronic
Features
- Robust metal housing for use in harsh industrial environments
- Very high switching frequency
- Clearly visible indication of the switching status
- Wide operating temperature range
- High protection rating for the requirements of harsh industrial environments
Technical specifications
| Detecting distance | 5 mm | |
| Degree of protection (IP) | IP67 | |
| Assembly | flush mounting M18, flush | |
| switching current | 200 mA | |
| Length | 70 mm | |
| Product type | inductive sensor | |
| Version | PNP | |
| Switching Voltage (DC) | 30 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
