IG5919 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting M18, not flush, 1 Form A (N/O) + 1 Form B (N/C), 55 V (DC), 400 mA, IG5919
Order No.: 82P5657
EAN: 4021179115391
MPN:
IG5919
Unit Price (€ / pc.)
96.0211 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
96.02 € *
Price list
Quantity
Price per unit*
1 pcs.
96.0211 €
3 pcs.
93.3555 €
5 pcs.
90.8446 €
*incl. VAT plus shipping costs
Subject to prior sale

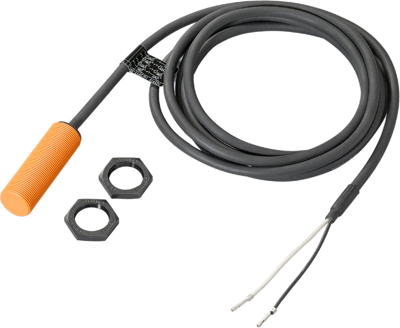

Inductive sensor, IG5919, IFM electronic
Features
- Output function normally open / normally closed programmable
- Two-wire technology
- High protection rating for the requirements of harsh industrial environments
Technical specifications
| Detecting distance | 12 mm | |
| Degree of protection (IP) | IP67 | |
| Assembly | flush mounting M18, not flush | |
| switching current | 400 mA | |
| Length | 56 mm | |
| Product type | inductive sensor | |
| Version | PNP/NPN | |
| Switching Voltage (DC) | 55 V | |
| Connection | cable, PUR 2x0.5 mm², 2 m | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
