IG5846 | IFM electronic

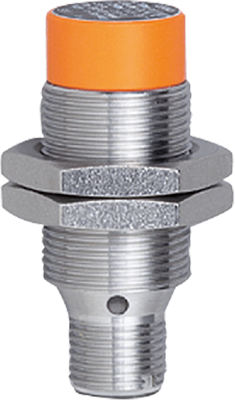

Inductive sensor, PNP, flush mounting M18, not flush, antivalent, 36 V (DC), 250 mA, IG5846
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
109.3610 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
109.36 € *
Price list
Quantity
Price per unit*
1 pcs.
109.3610 €
3 pcs.
106.3384 €
5 pcs.
103.4705 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, IG5846, IFM electronic
Features
- Robust stainless steel housing for use in the food and beverage industry
- Wide operating temperature range
- High protection rating for the requirements of harsh industrial environments
- Complementary output function NO/NC
- Clearly visible indication of the switching status
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | inductive sensor | |
| Version | PNP | |
| Latching switching function | antivalent | |
| Switching Voltage (DC) | 36 V | |
| switching current | 250 mA | |
| Detecting distance | 10 mm | |
| Assembly | flush mounting M18, not flush | |
| Connection | M12-connector | |
| Degree of protection (IP) | IP67 | |
| Length | 45 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
