IG5539 | IFM electronic
Inductive sensor, PNP, flush mounting M18, flush, antivalent, 30 V (DC), 200 mA, IG5539
Order No.: 82P5618
EAN: 4021179111966
MPN:
IG5539
Unit Price (€ / pc.)
93.2960 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
93.30 € *
Price list
Quantity
Price per unit*
1 pcs.
93.2960 €
3 pcs.
90.7256 €
5 pcs.
88.2861 €
*incl. VAT plus shipping costs
Subject to prior sale

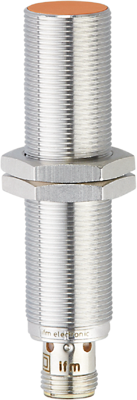

Inductive sensor, IG5539, IFM electronic
Features
- Robust metal housing for use in harsh industrial environments
- Complementary output function NO/NC
- Wide operating temperature range
- High protection rating for the requirements of harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | antivalent | |
| Detecting distance | 5 mm | |
| Degree of protection (IP) | IP67 | |
| Version | PNP | |
| Connection | M12-connector | |
| Assembly | flush mounting M18, flush | |
| switching current | 200 mA | |
| Switching Voltage (DC) | 30 V | |
| Length | 80 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
