IG5406 | IFM electronic

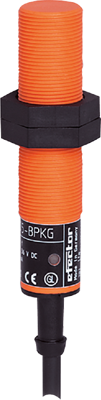

Inductive sensor, PNP, flush mounting M18, not flush, 1 Form B (N/C), 36 V (DC), 250 mA, IG5406
Order No.: 82P5609
EAN: 4021179110631
MPN:
IG5406
Unit Price (€ / pc.)
98.9961 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
99.00 € *
Price list
Quantity
Price per unit*
1 pcs.
98.9961 €
3 pcs.
96.2591 €
5 pcs.
93.6649 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, IG5406, IFM electronic
Features
- Wide operating temperature range
- High protection rating for the requirements of harsh industrial environments
- Very high switching frequency
Technical specifications
| Detecting distance | 8 mm | |
| Degree of protection (IP) | IP67 | |
| Assembly | flush mounting M18, not flush | |
| switching current | 250 mA | |
| Length | 80 mm | |
| Product type | inductive sensor | |
| Version | PNP | |
| Switching Voltage (DC) | 36 V | |
| Connection | cable, PVC 3x0.5 mm², 6 m | |
| Latching switching function | 1 Form B (N/C) |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
