IG513A | IFM electronic

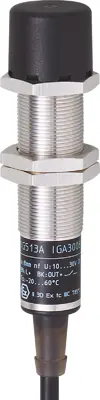

Inductive sensor, PNP, flush mounting M18, not flush, 1 Form A (N/O), 30 V (DC), 150 mA, IG513A
Unit Price (€ / pc.)
131.0666 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
131.07 € *
Price list
Quantity
Price per unit*
1 pcs.
131.0666 €
3 pcs.
127.4371 €
5 pcs.
124.0218 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, IG513A, IFM electronic
Features
- For applications in hazardous areas
- High protection rating for the requirements of harsh industrial environments
- Direct connection to plant control without switching amplifier
- With preinstalled protective cover
- Robust metal housing for use in harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 30 V | |
| Connection | cable, PUR 3x0.5 mm², 2 m | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 150 mA | |
| Length | 80 mm | |
| Product type | inductive sensor | |
| Detecting distance | 8 mm | |
| Assembly | flush mounting M18, not flush | |
| Degree of protection (IP) | IP67 | |
| Version | PNP |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
