IG0233 | IFM electronic
Inductive sensor, brass white bronze-coated, flush mounting M18, not flush, 1 Form A (N/O), 250 V (DC), 100 mA, IG0233
Order No.: 82P5574
EAN: 4021179105071
MPN:
IG0233
Unit Price (€ / pc.)
152.8436 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
152.84 € *
Price list
Quantity
Price per unit*
1 pcs.
152.8436 €
3 pcs.
148.6191 €
5 pcs.
144.6207 €
*incl. VAT plus shipping costs
Subject to prior sale

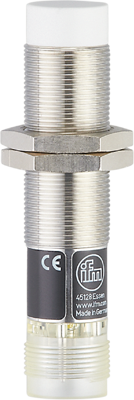

Inductive sensor, IG0233, IFM electronic
Features
- With combined AC/DC output stage
- Two-wire technology
- Wide operating temperature range
- Robust metal housing for use in harsh industrial environments
- With robust M18 connector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Detecting distance | 8 mm | |
| Degree of protection (IP) | IP67 | |
| Version | brass white bronze-coated | |
| Connection | M18-connector | |
| Assembly | flush mounting M18, not flush | |
| switching current | 100 mA | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 250 V | |
| Length | 81 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
