IFT260 | IFM electronic
Inductive sensor, PNP, flush mounting M12, not flush, 1 Form A (N/O), 30 V (DC), 100 mA, IFT260
Unit Price (€ / pc.)
92.0227 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
92.02 € *
Price list
Quantity
Price per unit*
1 pcs.
92.0227 €
3 pcs.
89.4880 €
5 pcs.
87.0723 €
*incl. VAT plus shipping costs
Subject to prior sale

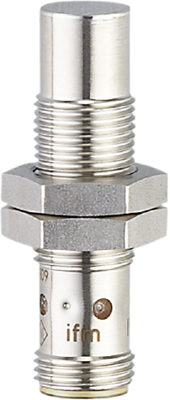

Inductive sensor, IFT260, IFM electronic
Features
- Robust, high-quality stainless steel design
- Compact housing for use where space is restricted
- Large operating temperature range up to 100 °C
- Easy connection via the tried and tested M12 connector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | PNP | |
| switching current | 100 mA | |
| Latching switching function | 1 Form A (N/O) | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K | |
| Detecting distance | 6 mm | |
| Length | 45 mm | |
| Switching Voltage (DC) | 30 V | |
| Connection | M12-connector | |
| Product type | inductive all metal sensor | |
| Assembly | flush mounting M12, not flush |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
