IFS298 | IFM electronic
Inductive sensor, PNP, flush mounting M12, not flush, 1 Form A (N/O), 30 V (DC), 100 mA, IFS298
As a private customer, you can buy this item as soon as we have it back in stock.

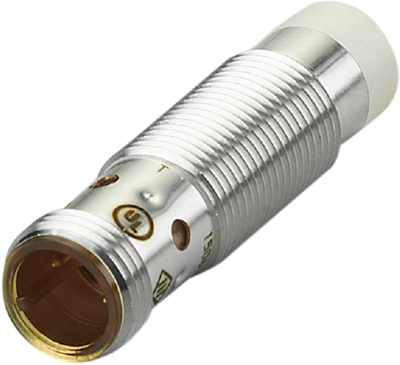

Inductive sensor, IFS298, IFM electronic
Features
- Suitable for industrial, mobile, cooling and lubricating applications
- High protection rating for the requirements of harsh industrial environments
- Correction factor 1: Constant sensing range on all metals
- Very high switching frequency
- Vibration and shock resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 30 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 100 mA | |
| Length | 45 mm | |
| Product type | inductive sensor | |
| Detecting distance | 8 mm | |
| Assembly | flush mounting M12, not flush | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K | |
| Version | PNP |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
