IFS249 | IFM electronic

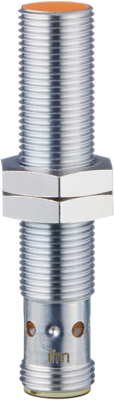

Inductive sensor, NPN, flush mounting M12, flush, 1 Form B (N/C), 30 V (DC), 100 mA, IFS249
Unit Price (€ / pc.)
79.5158 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
79.52 € *
Price list
Quantity
Price per unit*
1 pcs.
79.5158 €
3 pcs.
76.0767 €
5 pcs.
72.9232 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, IFS249, IFM electronic
Features
- Suitable for industrial, mobile, cooling and lubricating applications
- High protection rating for the requirements of harsh industrial environments
- Flexible use thanks to large operating temperature range
- Safe detection due to large sensing range and low sensor tolerances
- Reduced storage due to wide range of applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 30 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form B (N/C) | |
| switching current | 100 mA | |
| Length | 60 mm | |
| Product type | inductive sensor | |
| Detecting distance | 4 mm | |
| Assembly | flush mounting M12, flush | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K | |
| Version | NPN |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
