IFS205 | IFM electronic
Inductive sensor, PNP, flush mounting M12, not flush, 1 Form A (N/O), 30 V (DC), 100 mA, IFS205
Order No.: 81P9315
EAN: 4021179086806
MPN:
IFS205
Unit Price (€ / pc.)
75.8149 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
75.81 € *
Price list
Quantity
Price per unit*
1 pcs.
75.8149 €
5 pcs.
72.7804 €
10 pcs.
69.9839 €
*incl. VAT plus shipping costs
Subject to prior sale

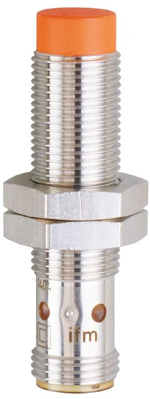

Inductive sensor, IFS205, IFM
The IFS205 is a inductive sensor with very high switching frequency and long sensing range for high uptime.
Features
- Permanently legible laser type label
- Clearly visible indication of the switching status
- Robust metal housing for use in harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 50 mm | |
| Version | PNP | |
| Connection | M12-connector | |
| diameter | 12 mm | |
| Degree of protection (IP) | IP67 | |
| Product type | inductive sensor | |
| Assembly | flush mounting M12, not flush | |
| switching current | 100 mA | |
| Latching switching function | 1 Form A (N/O) | |
| Detecting distance | 7 mm | |
| Switching Voltage (DC) | 30 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
