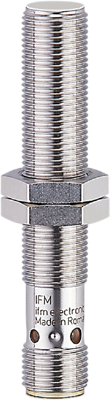

IFM203 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting M12, flush, 1 Form A (N/O), 36 V (DC), 100 mA, IFM203
Order No.: 82P5421
EAN: 4021179086578
MPN:
IFM203
Unit Price (€ / pc.)
83.7522 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
83.75 € *
Price list
Quantity
Price per unit*
1 pcs.
83.7522 €
3 pcs.
80.1227 €
5 pcs.
76.8026 €
*incl. VAT plus shipping costs
**Subject to prior sale
Inductive sensor, IFM203, IFM electronic
Features
- High shock and vibration resistance for use in mobile machines
- E1 type approval by the Kraftfahrt-Bundesamt (German Federal Motor Transport Authority)
- Wide operating temperature range
- High ingress protection for the requirements of harsh environmental conditions
Technical specifications
| Detecting distance | 4 mm | |
| Degree of protection (IP) | IP67/IP69K | |
| Assembly | flush mounting M12, flush | |
| switching current | 100 mA | |
| Length | 70 mm | |
| Product type | inductive sensor | |
| Version | PNP/NPN | |
| Switching Voltage (DC) | 36 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
