IF5896 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting M12, flush, 1 Form A (N/O) + 1 Form B (N/C), 30 V (DC), 100 mA, IF5896
Order No.: 82P5339
EAN: 4021179099561
MPN:
IF5896
Unit Price (€ / pc.)
103.3277 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
103.33 € *
Price list
Quantity
Price per unit*
1 pcs.
103.3277 €
3 pcs.
100.4598 €
5 pcs.
97.7585 €
*incl. VAT plus shipping costs
Subject to prior sale

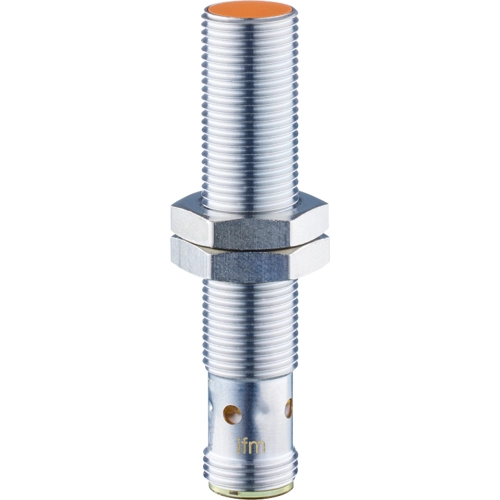

Inductive sensor, IF5896, IFM electronic
Features
- Robust housing for use in metalworking
- Resistant to oils and coolants
- Long sensing range for high uptime
- Output function normally open / normally closed programmable
- With optical mounting and setting aid
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Detecting distance | 4 mm | |
| Degree of protection (IP) | IP68 | |
| Version | PNP/NPN | |
| Connection | M12-connector | |
| Assembly | flush mounting M12, flush | |
| switching current | 100 mA | |
| Switching Voltage (DC) | 30 V | |
| Length | 60 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
