IER203 | IFM electronic

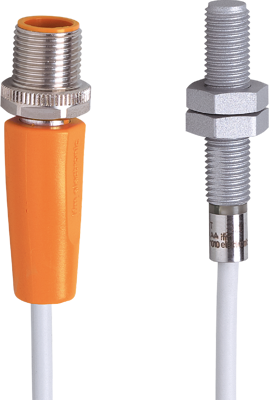

Inductive sensor, PNP/NPN, flush mounting M8, flush, 1 Form A (N/O), 36 V (DC), 100 mA, IER203
Unit Price (€ / pc.)
134.6485 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
134.65 € *
Price list
Quantity
Price per unit*
1 pcs.
134.6485 €
3 pcs.
130.9357 €
5 pcs.
127.4014 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, IER203, IFM electronic
Features
- For use in machine tools and metalworking
- Resistant to weld slag thanks to non-stick coating
- Metal sensing face for heavy duty
- Long sensing range for high uptime
- Excellent price/performance ratio
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | PNP/NPN | |
| switching current | 100 mA | |
| Latching switching function | 1 Form A (N/O) | |
| Degree of protection (IP) | IP67 | |
| Detecting distance | 2 mm | |
| Length | 45 mm | |
| Switching Voltage (DC) | 36 V | |
| Connection | cable, PUR 2x0.34 mm², 0.3 m/M12 connector | |
| Product type | inductive all metal sensor | |
| Assembly | flush mounting M8, flush |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
