IE9203 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting M8, flush, 1 Form A (N/O), 55 V (DC), 100 mA, IE9203
Unit Price (€ / pc.)
138.3732 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
138.37 € *
Price list
Quantity
Price per unit*
1 pcs.
138.3732 €
3 pcs.
134.5414 €
5 pcs.
130.9357 €
*incl. VAT plus shipping costs
Subject to prior sale

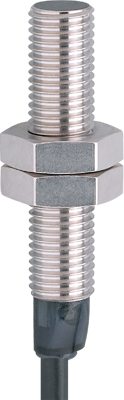

Inductive sensor, IE9203, IFM electronic
Features
- Particularly short housing
- For use where space is restricted
- Robust metal housing for use in harsh industrial environments
- Very high switching frequency
- Two-wire technology
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | PNP/NPN | |
| switching current | 100 mA | |
| Latching switching function | 1 Form A (N/O) | |
| Degree of protection (IP) | IP67 | |
| Detecting distance | 2 mm | |
| Length | 42 mm | |
| Switching Voltage (DC) | 55 V | |
| Connection | cable, PUR 2x0.14 mm², 2 m | |
| Product type | inductive sensor | |
| Assembly | flush mounting M8, flush |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
