IE5457 | IFM electronic
Inductive sensor, with IO-Link, flush mounting M8, flush, 1 Form A (N/O) + 1 Form B (N/C), 30 V (DC), 100 mA, IE5457
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
98.4606 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
98.46 € *
Price list
Quantity
Price per unit*
1 pcs.
98.4606 €
3 pcs.
95.7355 €
5 pcs.
93.1651 €
*incl. VAT plus shipping costs
Subject to prior sale

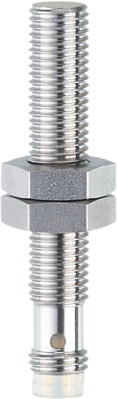

Inductive sensor, IE5457, IFM electronic
Features
- Clearly visible indication of the readiness for operation
- Long sensing range for high uptime
- High protection rating for the requirements of harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | inductive sensor | |
| Version | with IO-Link | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Detecting distance | switching point 0.56-2.8 mm, measuring range 0.3-3 mm | |
| Assembly | flush mounting M8, flush | |
| Connection | M8-connector | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K | |
| Length | 50 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
