IE5379 | IFM electronic
Inductive sensor, PNP, flush mounting M8, flush, 1 Form A (N/O), 30 V (DC), 100 mA, IE5379
Unit Price (€ / pc.)
104.0417 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
104.04 € *
Price list
Quantity
Price per unit*
1 pcs.
104.0417 €
3 pcs.
101.1619 €
5 pcs.
98.4368 €
*incl. VAT plus shipping costs
Subject to prior sale

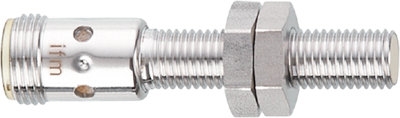

Inductive sensor, IE5379, IFM electronic
Features
- Resistant to oils and coolants
- Robust stainless steel housing for use in metalworking
- Very high switching frequency
- Particularly space-saving design
- For use where space is restricted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 30 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 100 mA | |
| Length | 50 mm | |
| Product type | inductive sensor | |
| Detecting distance | 2 mm | |
| Assembly | flush mounting M8, flush | |
| Degree of protection (IP) | IP68/IP69K | |
| Version | PNP |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
