IE5369 | IFM electronic

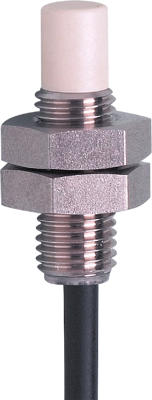

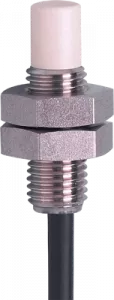

Inductive sensor, PNP, flush mounting M8, not flush, 1 Form A (N/O), 30 V (DC), 100 mA, IE5369

Order No.: 82P5149
EAN: 4021179085557
MPN:
IE5369
IE5369 IFM electronic Proximity Switches, Reed switches
Image may differ
Unit Price (€ / pc.)
95.4618 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
95.46 € *
Price list
Quantity
Price per unit*
1 pcs.
95.4618 €
3 pcs.
92.8200 €
5 pcs.
90.3210 €
*incl. VAT plus shipping costs
**Subject to prior sale

Inductive sensor, IE5369, IFM electronic

Features

  • Particularly short housing
  • For use where space is restricted
  • Space-saving connection technology
  • Very high switching frequency
  • Robust stainless steel housing for use in harsh industrial environments
Technical specifications
Connection Kabel, PUR 3x0,14 mm², 2 m
Version PNP
Detecting distance 4 mm
Length 27 mm
Assembly Einbaumontage M8, nicht bündig
Product type Induktiver Sensor
Latching switching function 1 Schließer
Switching Voltage (DC) 30 V
switching current 100 mA
Degree of protection (IP) IP67
Logistics
Country of origin RO
Customs tariff number 85365019
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
