IE5349 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting M8, flush, 1 Form B (N/C), 30 V (DC), 100 mA, IE5349
Order No.: 82P5141
EAN: 4021179085359
MPN:
IE5349
Unit Price (€ / pc.)
85.5848 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
85.58 € *
Price list
Quantity
Price per unit*
1 pcs.
85.5848 €
3 pcs.
83.2167 €
5 pcs.
80.9795 €
*incl. VAT plus shipping costs
Subject to prior sale

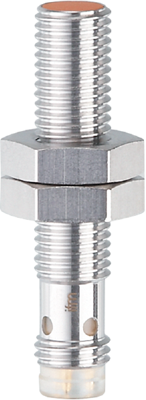

Inductive sensor, IE5349, IFM electronic
Features
- Particularly short housing
- For use where space is restricted
- Clearly visible indication of the switching status
- Long sensing range for high uptime
- Reduced stock-keeping due to operation as three-wire or two-wire unit
Technical specifications
| Detecting distance | 3 mm | |
| Degree of protection (IP) | IP65/IP67 | |
| Assembly | flush mounting M8, flush | |
| switching current | 100 mA | |
| Length | 40 mm | |
| Product type | inductive sensor | |
| Version | PNP/NPN | |
| Switching Voltage (DC) | 30 V | |
| Connection | M8-connector | |
| Latching switching function | 1 Form B (N/C) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
