IE5344 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting M8, flush, 1 Form A (N/O), 30 V (DC), 100 mA, IE5344
Order No.: 82P5139
EAN: 4021179085304
MPN:
IE5344
Unit Price (€ / pc.)
96.8779 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
96.88 € *
Price list
Quantity
Price per unit*
1 pcs.
96.8779 €
3 pcs.
94.2004 €
5 pcs.
91.6657 €
*incl. VAT plus shipping costs
Subject to prior sale

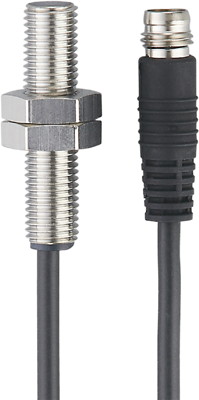

Inductive sensor, IE5344, IFM electronic
Features
- Particularly short housing
- For use where space is restricted
- Space-saving connection technology
- Long sensing range for high uptime
- Reduced stock-keeping due to operation as three-wire or two-wire unit
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Detecting distance | 3 mm | |
| Degree of protection (IP) | IP67 | |
| Version | PNP/NPN | |
| Connection | cable, PVC 3x0.14 mm², 0.3 m/M8 connector | |
| Assembly | flush mounting M8, flush | |
| switching current | 100 mA | |
| Switching Voltage (DC) | 30 V | |
| Length | 37 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
