IE5327 | IFM electronic
Inductive sensor, PNP, flush mounting M8, flush, 1 Form B (N/C), 30 V (DC), 100 mA, IE5327
Order No.: 82P5130
EAN: 4021179085144
MPN:
IE5327
Unit Price (€ / pc.)
114.9302 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
114.93 € *
Price list
Quantity
Price per unit*
1 pcs.
114.9302 €
3 pcs.
111.7529 €
5 pcs.
108.7541 €
*incl. VAT plus shipping costs
Subject to prior sale

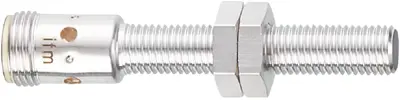

Inductive sensor, IE5327, IFM electronic
Features
- Particularly space-saving design
- For use where space is restricted
- With robust M12 connector
- Clearly visible indication of the switching status
- Very high switching frequency
Technical specifications
| Detecting distance | 2 mm | |
| Degree of protection (IP) | IP67 | |
| Assembly | flush mounting M8, flush | |
| switching current | 100 mA | |
| Length | 60 mm | |
| Product type | inductive sensor | |
| Version | PNP | |
| Switching Voltage (DC) | 30 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form B (N/C) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
