IE5203 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting M8, flush, 1 Form A (N/O) + 1 Form B (N/C), 30 V (DC), 100 mA, IE5203
Order No.: 82P5106
EAN: 4021179083904
MPN:
IE5203
Unit Price (€ / pc.)
100.8882 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
100.89 € *
Price list
Quantity
Price per unit*
1 pcs.
100.8882 €
3 pcs.
98.0917 €
5 pcs.
95.4618 €
*incl. VAT plus shipping costs
Subject to prior sale

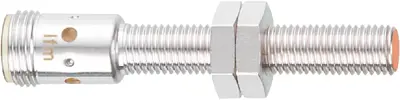

Inductive sensor, IE5203, IFM electronic
Features
- For use where space is restricted
- Robust metal housing for use in harsh industrial environments
- Very high switching frequency
- Output function normally open / normally closed programmable
- With robust M12 connector
Technical specifications
| Detecting distance | 1 mm | |
| Degree of protection (IP) | IP67 | |
| Assembly | flush mounting M8, flush | |
| switching current | 100 mA | |
| Length | 60 mm | |
| Product type | inductive sensor | |
| Version | PNP/NPN | |
| Switching Voltage (DC) | 30 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
