IE5122 | IFM electronic

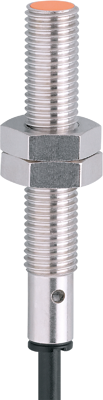

Inductive sensor, PNP, flush mounting M8, flush, 1 Form B (N/C), 36 V (DC), 200 mA, IE5122
Order No.: 82P5095
EAN: 4021179083096
MPN:
IE5122
Unit Price (€ / pc.)
102.8874 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
102.89 € *
Price list
Quantity
Price per unit*
1 pcs.
102.8874 €
3 pcs.
100.0433 €
5 pcs.
97.3539 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, IE5122, IFM electronic
Features
- Particularly space-saving design
- For use where space is restricted
- Space-saving connection technology
- Robust metal housing for use in harsh industrial environments
- Very high switching frequency
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form B (N/C) | |
| Detecting distance | 1 mm | |
| Degree of protection (IP) | IP67 | |
| Version | PNP | |
| Connection | cable, PVC 3x0.14 mm², 2 m | |
| Assembly | flush mounting M8, flush | |
| switching current | 200 mA | |
| Switching Voltage (DC) | 36 V | |
| Length | 50 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
