ID5046 | IFM electronic

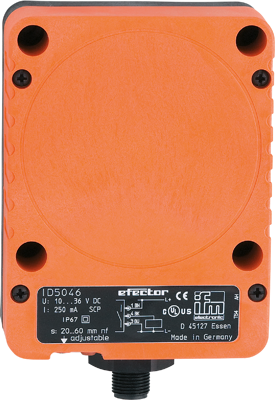

Inductive sensor, PNP, flush mounting, not flush, 1 Form A (N/O) + 1 Form B (N/C), 36 V (DC), 250 mA, ID5046
Order No.: 82P5079
EAN: 4021179081702
MPN:
ID5046
Unit Price (€ / pc.)
322.3948 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
322.39 € *
Price list
Quantity
Price per unit*
1 pcs.
322.3948 €
3 pcs.
313.9577 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, ID5046, IFM electronic
Features
- Very long sensing range
- Large active sensor face
- Easy setting of the sensing range via potentiometer
- Output function normally open / normally closed programmable
- Robust housing for use in harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Detecting distance | 20-60 mm | |
| Degree of protection (IP) | IP67 | |
| Version | PNP | |
| Connection | M12-connector | |
| Assembly | flush mounting, not flush | |
| switching current | 250 mA | |
| Switching Voltage (DC) | 36 V | |
| Length | 105 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
