IC0003 | IFM electronic
Inductive sensor, PPE, flush mounting, not flush, 1 Form A (N/O) + 1 Form B (N/C), 250 V (DC), 100 mA, IC0003
Unit Price (€ / pc.)
237.4050 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
237.41 € *
Price list
Quantity
Price per unit*
1 pcs.
237.4050 €
3 pcs.
231.1694 €
*incl. VAT plus shipping costs
Subject to prior sale

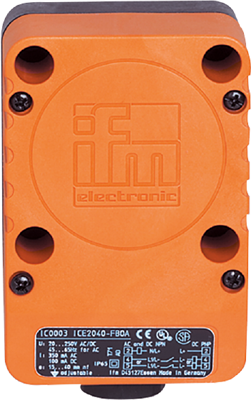

Inductive sensor, IC0003, IFM electronic
Features
- Very long sensing range and large active sensor face
- Easy setting of the sensing range via potentiometer
- With combined AC/DC output and two-wire technology
- Output function normally open / normally closed programmable
- Robust housing for use in harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 250 V | |
| Connection | connection terminal 2.5 mm²/cable gland M20 | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| switching current | 100 mA | |
| Length | 90 mm | |
| Product type | inductive sensor | |
| Detecting distance | 40 mm | |
| Assembly | flush mounting, not flush | |
| Degree of protection (IP) | IP65 | |
| Switching Voltage (AC) | 250 V | |
| Version | PPE |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
