IB5063 | IFM electronic
Inductive sensor, PNP, flush mounting, not flush, 1 Form A (N/O) + 1 Form B (N/C), 36 V (DC), 250 mA, IB5063
Unit Price (€ / pc.)
146.4057 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
146.41 € *
Price list
Quantity
Price per unit*
1 pcs.
146.4057 €
3 pcs.
142.3597 €
5 pcs.
138.5398 €
*incl. VAT plus shipping costs
Subject to prior sale

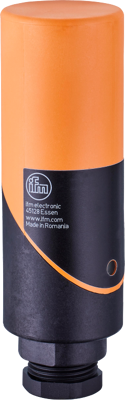

Inductive sensor, IB5063, IFM electronic
Features
- Output function normally open / normally closed programmable
- Smooth plastic housing to protect against deposits
- PBT housing resistant against pickling solutions
- With connector that can be rotated by 90°
- For applications in pickling lines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | inductive sensor | |
| Version | PNP | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Switching Voltage (DC) | 36 V | |
| switching current | 250 mA | |
| Detecting distance | 20 mm | |
| Assembly | flush mounting, not flush | |
| Connection | connection terminal 2.5 mm²/cable gland M20 | |
| Degree of protection (IP) | IP65 | |
| diameter | 34 mm | |
| Length | 98 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
