IA0032 | IFM electronic
Inductive sensor, PBT, flush mounting, not flush, 1 Form A (N/O) + 1 Form B (N/C), 250 V (DC), 100 mA, IA0032
Order No.: 82P5020
EAN: 4021179075923
MPN:
IA0032
Unit Price (€ / pc.)
149.8329 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
149.83 € *
Price list
Quantity
Price per unit*
1 pcs.
149.8329 €
3 pcs.
145.6917 €
5 pcs.
141.7647 €
*incl. VAT plus shipping costs
Subject to prior sale

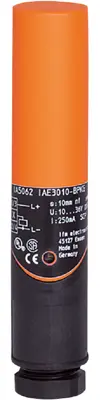

Inductive sensor, IA0032, IFM electronic
Features
- With combined AC/DC output stage
- Two-wire technology
- Smooth plastic housing to protect against deposits
- With terminal chamber that can be rotated by 90°
- High protection rating for the requirements of harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Detecting distance | 10 mm | |
| Degree of protection (IP) | IP65 | |
| Version | PBT | |
| Connection | connection terminal 2.5 mm²/cable gland M16 | |
| Assembly | flush mounting, not flush | |
| switching current | 100 mA | |
| Switching Voltage (AC) | 250 V | |
| diameter | 20 mm | |
| Switching Voltage (DC) | 250 V | |
| Length | 92 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
