I7R202 | IFM electronic
Inductive ring sensor, NPN, 1 Form A (N/O) + 1 Form B (N/C), 35 V (DC), 200 mA, I7R202
Order No.: 82P4991
EAN: 4021179253031
MPN:
I7R202
Unit Price (€ / pc.)
183.4980 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
183.50 € *
Price list
Quantity
Price per unit*
1 pcs.
183.4980 €
3 pcs.
178.6904 €
*incl. VAT plus shipping costs
Subject to prior sale

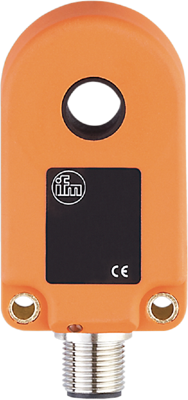

Ring sensor, I7R202, IFM electronic
Features
- High resolution
- Short response times
- Insensitive to dirt
- Static operating principle
- High protection rating
Technical specifications
| Detecting distance | 1.5 mm | |
| Degree of protection (IP) | IP67 | |
| switching current | 200 mA | |
| Length | 60 mm | |
| Product type | inductive ring sensor | |
| Version | NPN | |
| Switching Voltage (DC) | 35 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
