I27001 | IFM electronic
Inductive area sensor, PNP, flush mounting, not flush, 1 Form A (N/O), 36 V (DC), 250 mA, I27001
Unit Price (€ / pc.)
431.9819 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
431.98 € *
Price list
Quantity
Price per unit*
1 pcs.
431.9819 €
3 pcs.
421.0934 €
*incl. VAT plus shipping costs
Subject to prior sale

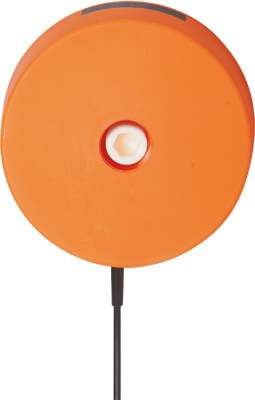

Inductive sensor, I27001, IFM electronic
Features
- Long sensing range of 120 mm
- Active base with Ø 164 mm
- For applications in the steel and metal industries
- Easy setting of the sensing range via potentiometer
- DC version
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 164 mm | |
| Switching Voltage (DC) | 36 V | |
| Connection | cable, PVC 3x0.5 mm², 2 m | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 250 mA | |
| Length | 63 mm | |
| Product type | inductive area sensor | |
| Detecting distance | 30-120 mm | |
| Assembly | flush mounting, not flush | |
| Degree of protection (IP) | IP65 | |
| Version | PNP |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
