I22006 | IFM electronic

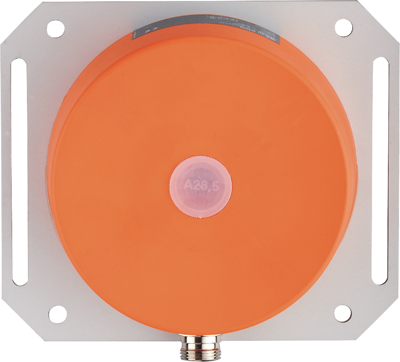

Inductive area sensor, PBT, mounting plate, not flush, 1 Form A (N/O), 200 mA, I22006

Order No.: 82P4987
EAN: 4021179226622
MPN:
I22006
Series: I
I22006 IFM electronic Proximity Switches, Reed switches
Image may differ
Unit Price (€ / pc.)
504.4529 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
504.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
504.4529 €

Inductive sensor, I22006, IFM electronic

Features

  • Easy setting of the sensing range via potentiometer
  • For applications in the steel and metal industries
  • With AC output for use in AC power mains
  • Long sensing range of 120 mm
  • Active base with Ø 164 mm
Technical specifications
Filter Property Value
diameter 164 mm
Length 68 mm
Assembly mounting plate, not flush
Latching switching function 1 Form A (N/O)
switching current 200 mA
Switching Voltage (AC) 250 V
Detecting distance 30-120 mm
Connection 7/8" connector
Degree of protection (IP) IP65
Product type inductive area sensor
Version PBT
Logistics
Property Value
Customs tariff number 85365080
Country of origin SG
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
