I22003 | IFM electronic

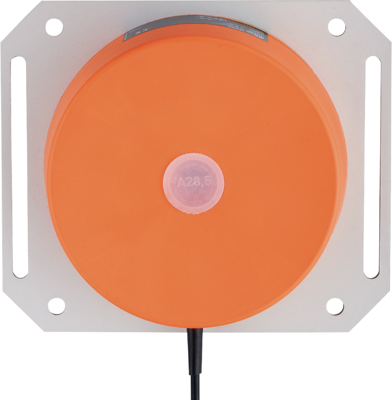

Inductive area sensor, PBT, mounting plate, not flush, 1 Form A (N/O), 200 mA, I22003
Order No.: 82P4986
EAN: 4021179141918
MPN:
I22003
Unit Price (€ / pc.)
504.4529 € *
Standard delivery time from the manufacturer is: 1 Week
Inductive sensor, I22003, IFM electronic
Features
- Long sensing range of 120 mm
- Active base with Ø 164 mm
- For applications in the steel and metal industries
- Easy setting of the sensing range via potentiometer
- With AC output for use in AC power mains
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Detecting distance | 30-120 mm | |
| Degree of protection (IP) | IP65 | |
| Version | PBT | |
| Connection | cable, PVC 2x0.5 mm², 2 m | |
| Assembly | mounting plate, not flush | |
| switching current | 200 mA | |
| Switching Voltage (AC) | 250 V | |
| diameter | 164 mm | |
| Length | 68 mm | |
| Product type | inductive area sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | SG |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
