GM504S | IFM electronic
Inductive safety sensor, switch-off distance 30 mm, flush mounting, not flush, clock signal, 30 V (DC), GM504S
Order No.: 82P4977
EAN: 4021179075329
MPN:
GM504S
Unit Price (€ / pc.)
214.2119 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
214.21 € *
Price list
Quantity
Price per unit*
1 pcs.
214.2119 €
3 pcs.
208.5951 €
*incl. VAT plus shipping costs
Subject to prior sale

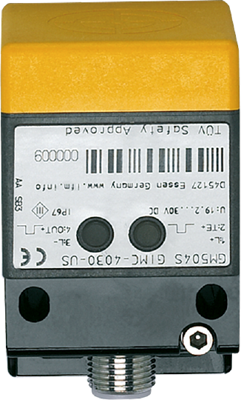

Fail-safe inductive sensor, GM504S, IFM electronic
Features
- For ensuring machine safety
- Certified to the following standards: EN 60947-5-3, IEC 61508 and ISO 13849
- No special actuator for electronic fail-safe sensors required
- Direct connection to safe ifm relays
- Series connection of sensors possible
Technical specifications
| Detecting distance | 10-15 mm | |
| Degree of protection (IP) | IP65/IP67 | |
| Assembly | flush mounting, not flush | |
| Length | 66 mm | |
| Product type | inductive safety sensor | |
| Version | switch-off distance 30 mm | |
| Switching Voltage (DC) | 30 V | |
| Connection | M12-connector | |
| Latching switching function | clock signal |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
