GI506S | IFM electronic
Inductive safety sensor, switch-off distance 30 mm, flush mounting M30, not flush, clock signal, 30 V (DC), GI506S
Order No.: 82P4971
EAN: 4021179075268
MPN:
GI506S
Unit Price (€ / pc.)
212.0461 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
212.05 € *
Price list
Quantity
Price per unit*
1 pcs.
212.0461 €
3 pcs.
206.4888 €
*incl. VAT plus shipping costs
Subject to prior sale

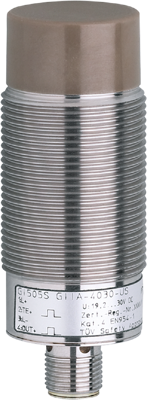

Fail-safe inductive sensor, GI506S, IFM electronic
Features
- For ensuring machine safety
- Certified to the following standards: EN 60947-5-3, IEC 61508 and ISO 13849
- No special actuator for electronic fail-safe sensors required
- Direct connection to safe ifm relays
- Series connection of sensors possible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | clock signal | |
| Detecting distance | 6-12 mm | |
| Degree of protection (IP) | IP68/IP69K | |
| Version | switch-off distance 30 mm | |
| Connection | M12-connector | |
| Assembly | flush mounting M30, not flush | |
| Switching Voltage (DC) | 30 V | |
| Length | 80 mm | |
| Product type | inductive safety sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
