PY2209 | IFM electronic
Pressure sensor, -15-15 psi, 18-32 VDC, PY2209
Unit Price (€ / pc.)
813.127 € *
Standard delivery time from the manufacturer is: 1 Week

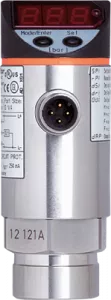

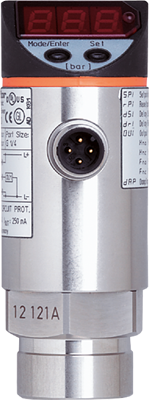

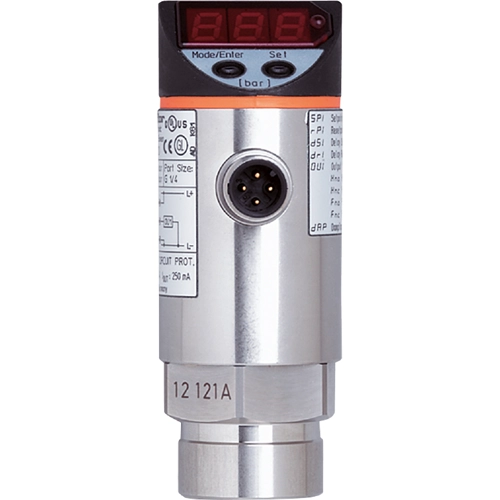

Electronic pressure sensor, PY2209, IFM electronic
Features
- Two switching outputs, one of them programmable as analogue output
- Precise scalable analogue output and high precision over the whole temperature range
- Clearly visible 4-digit LED display
- With long-term stability thanks to high overload protection
- Robust design for use in harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | pressure sensor | |
| Version | with display, relative pressure, PNP/NPN | |
| measurement range | -15-15 psi | |
| Latching switching function | Form A (N/O)/Form B (N/C) | |
| Voltage | 18-32 VDC | |
| Assembly | 1/4" NPT internal thread | |
| Enclosure | cylindrical | |
| Connection | M12-connector | |
| diameter | 34 mm | |
| Length | 91.5 mm | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90262020 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
