PU5704 | IFM electronic

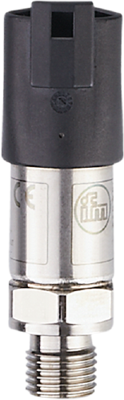

Pressure transmitter, 0-10 bar/0-145 psi/0-1000 kPa/0-1 MPa, 16-32 VDC, PU5704
Unit Price (€ / pc.)
202.7284 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
202.73 € *
Price list
Quantity
Price per unit*
1 pcs.
202.7284 €
3 pcs.
197.4091 €
*incl. VAT plus shipping costs
Subject to prior sale
Electronic pressure sensor, PU5704, IFM electronic
Features
- For the reliable detection of the system pressure in mobile machines
- Robust stainless steel housing with high shock and vibration resistance
- Compact housing for use where space is restricted
- DEUTSCH connector for the fast and easy connection to the on-board system
- With long-term stability thanks to high repeatability and low linearity error
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 19 mm | |
| max. operating temperature | 100 °C | |
| Length | 71.5 mm | |
| min. operating temperature | -40 °C | |
| Assembly | G 1/4 external thread (DIN EN ISO 1179-2) | |
| Voltage | 16-32 VDC | |
| measurement range | 0-10 bar/0-145 psi/0-1000 kPa/0-1 MPa | |
| Connection | DT04-3P | |
| Product type | pressure transmitter | |
| Version | relative pressure, analog signal | |
| Enclosure | cylindrical |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90262020 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
