PT5015 | IFM electronic

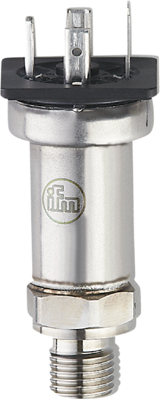

Pressure transmitter, 0-6 bar/0-87 psi/0-600 kPa/0-0.6 MPa, 8-36 VDC, PT5015
Unit Price (€ / pc.)
186.3659 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
186.37 € *
Price list
Quantity
Price per unit*
1 pcs.
186.3659 €
3 pcs.
181.4869 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electronic pressure sensor, PT5015, IFM electronic
Features
- Reliable detection of system pressure in industrial and mobile applications
- High shock and vibration resistance
- Excellent repeatability and low linearity error
- Lifespan of more than 60 million pressure cycles
- Compact and robust stainless steel housing for use where space is restricted
Technical specifications
| Assembly | G 1/4 external thread (DIN EN ISO 1179-2) | |
| Enclosure | cylindrical | |
| diameter | 19 mm | |
| Length | 71 mm | |
| Product type | pressure transmitter | |
| Version | relative pressure, analog signal | |
| Voltage | 8-36 VDC | |
| min. operating temperature | -40 °C | |
| Connection | valve plug | |
| measurement range | 0-6 bar/0-87 psi/0-600 kPa/0-0.6 MPa | |
| max. operating temperature | 100 °C |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 90262020 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
