PI2817 | IFM electronic

Pressure sensor, -0.1-1.6 bar/-100-1600 mbar/-1.46-23.2 psi/-10-160 kPa, 18-32 VDC, PI2817

Order No.: 82P7705
EAN: 4021179306744
MPN:
PI2817
Series: PI

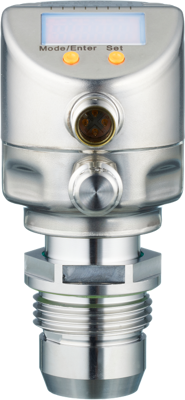

PI2817 IFM electronic Pressure Sensors
Image may differ
Unit Price (€ / pc.)
978.8583 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
978.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
978.8583 €

Electronic pressure sensor, PI2817, IFM electronic

Features

  • Robust stainless steel housing for use in the food and beverage industry
  • Hygienic, flush design
  • Resistant to high-pressure cleaning with aggressive cleaning agents
  • High temperature resistance and high protection rating
  • Programmable analogue and switching output
Technical specifications
Product type pressure sensor
Version with display, relative pressure, I/O link, PNP/NPN
measurement range -0.1-1.6 bar/-100-1600 mbar/-1.46-23.2 psi/-10-160 kPa
Latching switching function Form A (N/O)/Form B (N/C)
Voltage 18-32 VDC
Assembly G 1 external thread
Enclosure cylindrical
Connection M12-connector
diameter 50 mm
Length 106 mm
min. operating temperature -25 °C
max. operating temperature 80 °C
Logistics
Country of origin DE
Customs tariff number 90262020
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
