PI2798 | IFM electronic

Pressure sensor, -0.0124-0.25 bar/-12.4-250 mbar/-5-100.4 inH2O/-1.24-25 kPa, 18-32 VDC, PI2798

Order No.: 82P7701
EAN: 4021179244299
MPN:
PI2798
Series: PI

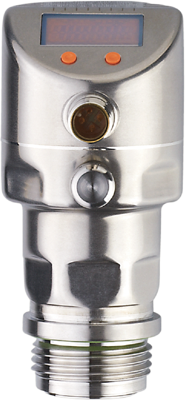

PI2798 IFM electronic Pressure Sensors
Image may differ
Unit Price (€ / pc.)
1,007.5492 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1,007.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,007.5492 €

Electronic pressure sensor, PI2798, IFM electronic

Features

  • Robust stainless steel housing for use in the food and beverage industry
  • Hygienic, flush design
  • Resistant to high-pressure cleaning with aggressive cleaning agents
  • High temperature resistance and high protection rating
  • Programmable analogue and switching output
Technical specifications
Product type pressure sensor
Version with display, relative pressure, I/O link, PNP/NPN
measurement range -0.0124-0.25 bar/-12.4-250 mbar/-5-100.4 inH2O/-1.24-25 kPa
Latching switching function Form A (N/O)/Form B (N/C)
Voltage 18-32 VDC
Assembly G 1 external thread
Enclosure cylindrical
Connection M12-connector
diameter 50 mm
Length 105.8 mm
min. operating temperature -25 °C
max. operating temperature 80 °C
Logistics
Country of origin DE
Customs tariff number 90262020
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
