PI2203 | IFM electronic

Pressure sensor, -1-25 bar/-14.4-362.7 psi/-0.1-2.5 MPa, 18-32 VDC, PI2203

Order No.: 82P7679
EAN: 4021179272476
MPN:
PI2203
Series: PI

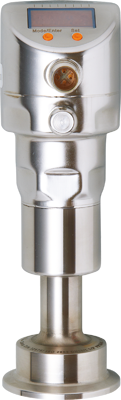

PI2203 IFM electronic Pressure Sensors
Image may differ
Unit Price (€ / pc.)
1,197.3542 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1,197.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,197.3542 €

Electronic pressure sensor, PI2203, IFM electronic

Features

  • For use in high temperatures in the food and beverage industry
  • Robust stainless steel housing with hygienic front-flush design
  • With two-wire and three-wire connection technology
  • Reduced wiring complexity when operated as two-wire current loop
  • Integrated clamp diaphragm seal with stainless steel membrane
Technical specifications
Product type pressure sensor
Version with display, relative pressure, vacuum, I/O-Link, PNP/NPN
measurement range -1-25 bar/-14.4-362.7 psi/-0.1-2.5 MPa
Latching switching function Form A (N/O)/Form B (N/C)
Voltage 18-32 VDC
Assembly terminal DN40
Enclosure cylindrical
Connection M12-connector
diameter 50 mm
Length 163 mm
min. operating temperature -25 °C
max. operating temperature 80 °C
Logistics
Country of origin DE
Customs tariff number 90262020
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
