PI003A | IFM electronic

Pressure sensor, -1-25 bar/-14.4-362.7 psi/-0.1-2.5 MPa, 18-32 VDC, PI003A

Order No.: 82P7662
EAN: 4021179244206
MPN:
PI003A
Series: PI
IFM electronic

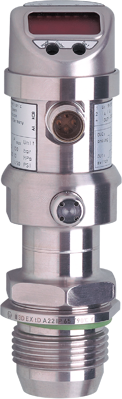

PI003A IFM electronic Pressure Sensors
Image may differ
Print
Key Specification:
Product type pressure sensor
Version with display, relative pressure, vacuum, PNP/NPN
measurement range -1-25 bar/-14.4-362.7 psi/-0.1-2.5 MPa
Latching switching function Form A (N/O)/Form B (N/C)
Voltage 18-32 VDC
Show variants: 3
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1,225.7238 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1,225.72 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,225.7238 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Combined pressure sensor, PI003A, IFM electronic

Features

  • For applications in hazardous areas
  • With switching output and analogue output
  • Scalable analogue output with adjustable span and zero point
  • Resistant to high-pressure cleaning with aggressive cleaning agents
  • Clearly visible 4-digit LED display
Technical specifications
Product type pressure sensor
Version with display, relative pressure, vacuum, PNP/NPN
measurement range -1-25 bar/-14.4-362.7 psi/-0.1-2.5 MPa
Latching switching function Form A (N/O)/Form B (N/C)
Voltage 18-32 VDC
Assembly G 1 external thread
Enclosure cylindrical
Connection M12-connector
diameter 36 mm
Length 132 mm
min. operating temperature -20 °C
max. operating temperature 60 °C
Articles of same specification 0
Logistics
Customs tariff number 90262020
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
