PG2735 | IFM electronic

Pressure sensor, -1-4 bar/-100-400 kPa, 18-32 VDC, PG2735

Order No.: 82P7639
EAN: 4021179328913
MPN:
PG2735
Series: PG

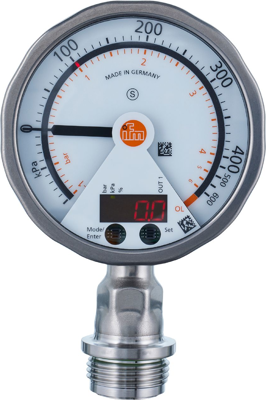

PG2735 IFM electronic Pressure Sensors Image 1

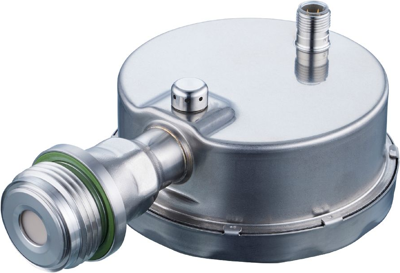

PG2735 IFM electronic Pressure Sensors Image 2
Image may differ
Unit Price (€ / pc.)
978.8583 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
978.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
978.8583 €

Electronic pressure sensor, PG2735, IFM electronic

Features

  • Analogue display, pressure switch and transmitter in one unit
  • Excellent readability also over a long distance
  • Rotatable display with LED bar graph for switch point indication
  • Hygienic, robust stainless steel housing for the requirements of the food and beverage industry
  • Flush process connection for use in CIP and SIP processes
Technical specifications
Assembly G 1 external thread
diameter 100 mm
Length 153 mm
Product type pressure sensor
Version relative pressure, vacuum, PNP/NPN, analog display
Voltage 18-32 VDC
min. operating temperature -25 °C
Connection M12-connector
measurement range -1-4 bar/-100-400 kPa
Latching switching function Form A (N/O)/Form B (N/C)
max. operating temperature 80 °C
Logistics
Country of origin DE
Customs tariff number 90262020
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
